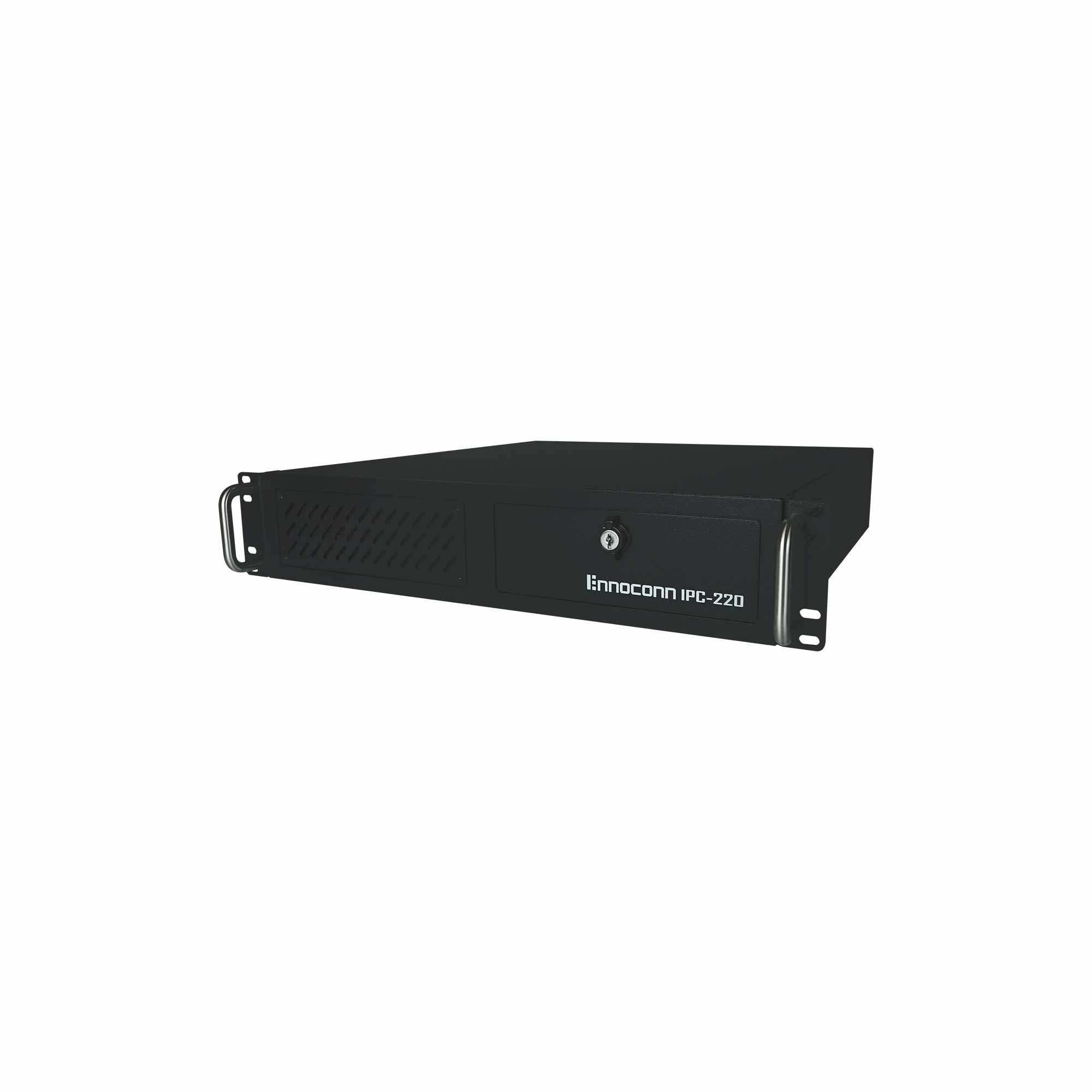

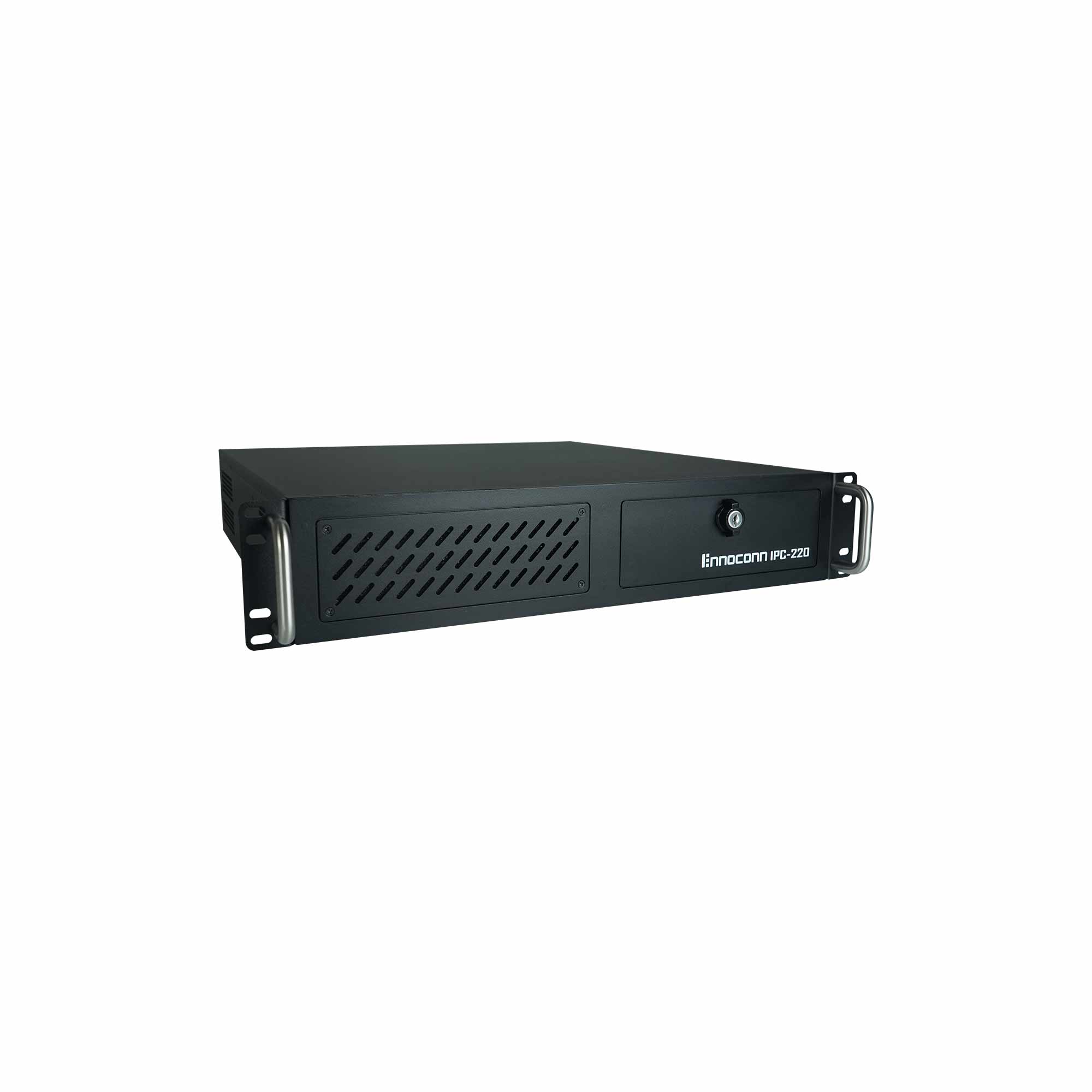

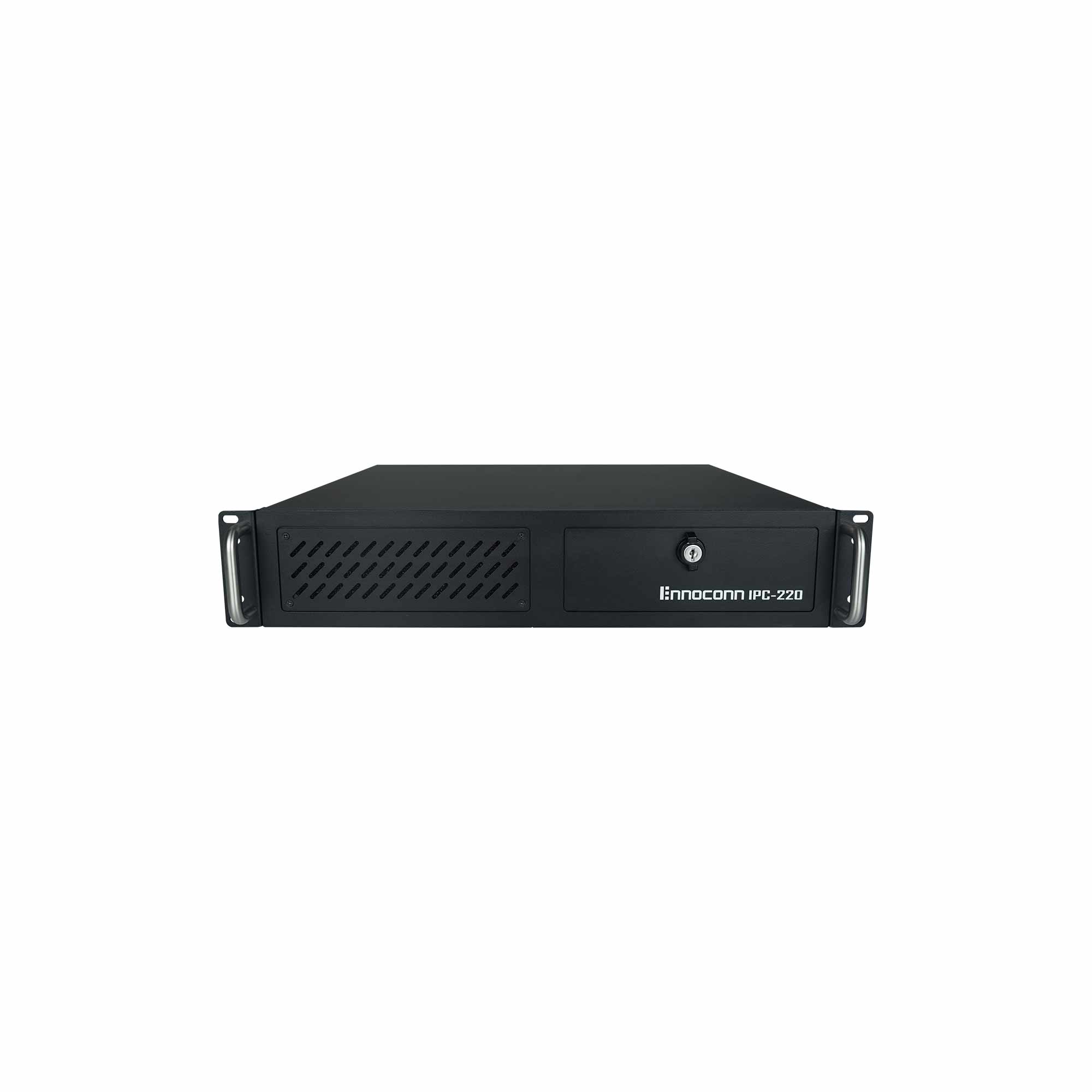

2U工控機 CEFS-RA21-H42A-2U

Intel^? 10th/11th 酷睿 i9/i7/i5/i3/奔騰^?/賽揚^?處理器, 功耗最高支援到95W
采用H420E 芯片組
支持VGA, HDMI, DP雙屏異顯
內置PCI, PCIe插槽，支持多種模塊擴展
抗震動磁盤架設計，可支持2個3.5"HDD, 1個2.5"SSD硬盤
前部可訪問 USB接口，更易于數據傳輸
海岸線上的USB端口支持Ennoconn USB SR Pro

產品介紹
詳細參數
產品型錄
驅動程序

產品介紹：

Intel? 10th/11th 酷睿 i9/i7/i5/i3/奔騰?/賽揚?處理器

系統 System

處理器 Processor	Intel^? 10th/11th Gen Core ? i9/i7/i5/i3/Pentium^?/Celeron^? Processor, LGA1200, TDP up to 95W
芯片組 Chipset	Intel^? H420E
內存 Memory	2 x DDR4 2400/2666/2933 MHz U-DIMM Slot, up to 64GB
圖形 Graphics	Intel^? UHD Graphics 630
存儲 Storage	3 x SATA 3.0, 1 x M.2 (SATA3.0)
操作系統 OS	Windows 10 64Bit, Linux
看門狗 Watchdog Timer	System Reset, Programmable via software from 1 to 255 seconds
信賴平臺模塊 TPM	Nuvoton TPM2.0(optional, need MOQ)

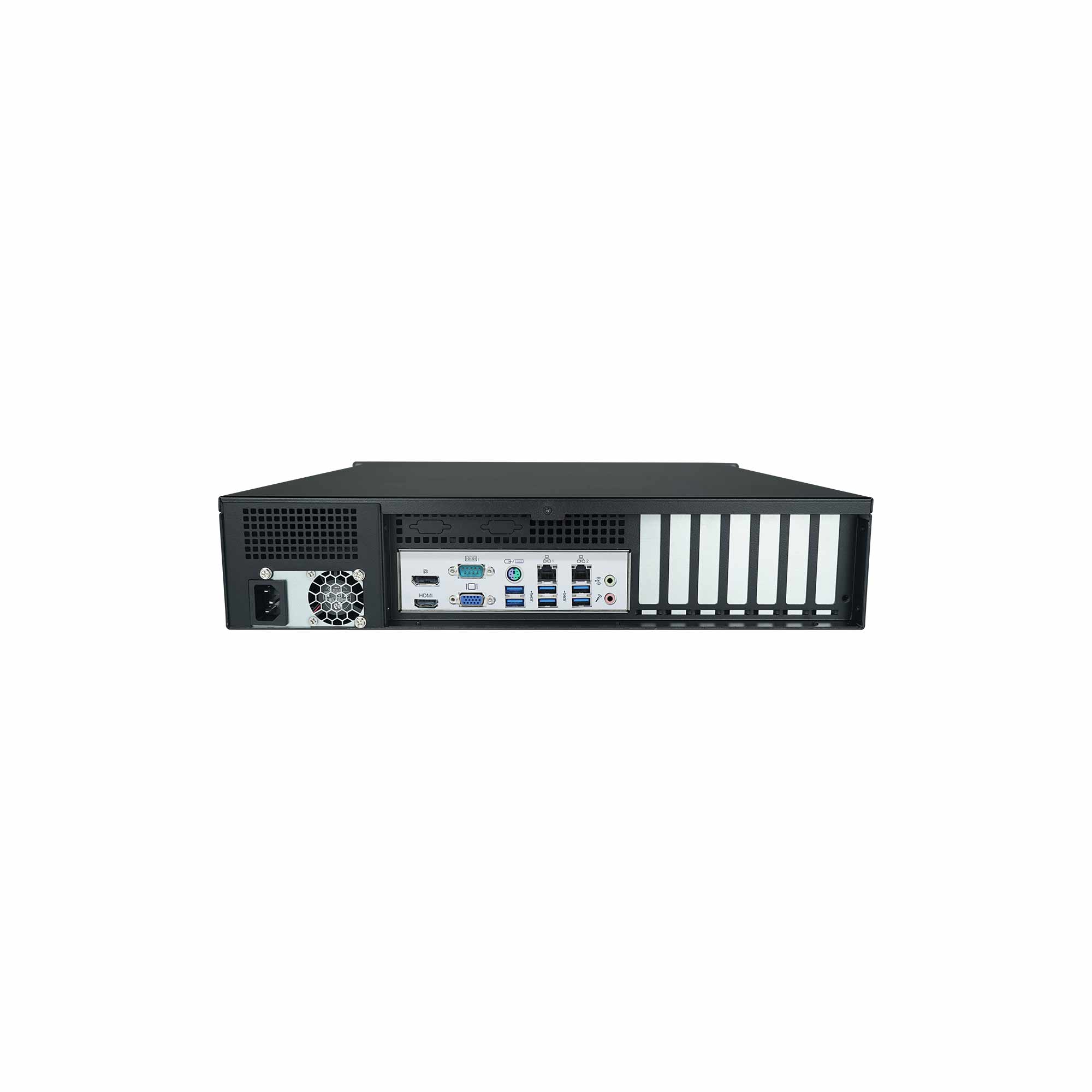

外部接口 External I/O

網口 Ethernet	1 x Intel^? i219-LM GbE, 1 x Intel^? i225-LM/i226-V (10/100/1000/2500 Mbps)
顯示 Video	1 x HDMI: max resolution up to 4096x2160 @ 30 Hz 1 x VGA: max resolution up to 1920 x 1200 @ 60Hz 1 x DP: max resolution up to 4096 x 2304 @ 60Hz
音頻 Audio	1 x Line-out, Mic-in
串口 COM	1 x RS232/422/485 (with auto flow control)
USB	6 x USB3.2 Gen1, 2 x USB2.0
PS/2	1 x PS/2 (MINI-DIN-6)
按鈕 Button	1 x Power Button, 1 x Reset Button
指示燈 LED	1 x Power LED, 1 x HDD LED

內部接口 Internal I/O

擴展接口 Expansion	1 x PCIe3.0 X16 (X16link),1 x PCIe3.0 X4 (X4 link),4 x PCI
風扇 FAN	1 x CPU Fan, 2 x System Fan
USB	2 x USB2.0 (Type-A share USB signal with one USB2.0)
GPIO	1 x 8-bit GPIO
串口 COM	1 x RS232/422/485 (with auto flow control), 4 x RS232
LPT	1 x LPT

環境 Environmental

操作溫度 Operating Temp.	0℃ ~ 40℃
存儲溫度Storage Temp.	-20℃ ~ 60℃
濕度Relative Humidity	5% ~ 95%, 非凝結狀態Non-condensing
隨機振動 Random Vibration	5~500Hz, 1Grms (HDD)operation
正弦振動 Sine Vibration	5~500Hz, 2G Non-operation
機械沖擊 Shock	10G @ 11ms operation

電源 Power
