嵌入式工業電腦 CES-R64X-W44A

Intel(R) Celeron(R) J6412 CPU Elkhart Lake(2.0 GHz/2.6GHz)
Intel(R) Celeron(R) J6413 CPU Elkhart Lake(1.8 GHz/3.0GHz)
支持1 x SO-DIMM DDR4，最大支持32GB
支持4個千兆網絡
支持DP/HDMI 擴展同步于/異步顯示
支持SATA/M.2 SSD, M.2 WiFi, Mini-PCIe
12~24V寬壓設計，可鎖附DC-IN接口

產品介紹
詳細參數
產品型錄
驅動程序

產品介紹：

Intel(R) Celeron(R) J6412/J6413 CPU Elkhart Lake

系統 System

處理器 Processor	Intel(R) Celeron(R) J6412 CPU Elkhart Lake(2.0 GHz/2.6GHz)(CES-R642-W44A) Intel(R) Celeron(R) J6413 CPU Elkhart Lake(1.8 GHz/3.0GHz)(CES-R643-W44A)
內存 Memory	1 x SDRAM DDR4 3200 MHz (max. 32G)
圖形 Graphics	Intel^? UHD Graphics for 10th Gen Intel^? Processors
存儲 Storage	1 x SATA 3.1 (2.5 寸硬盤) 1 x M.2 2242 (SATA3.0)
操作系統 OS	Windows 10, Ubuntu20.04
看門狗定時器 Watchdog Timer	Programmable 255 levels timer interval, from 1~255 sec/min

外部接口 External I/O

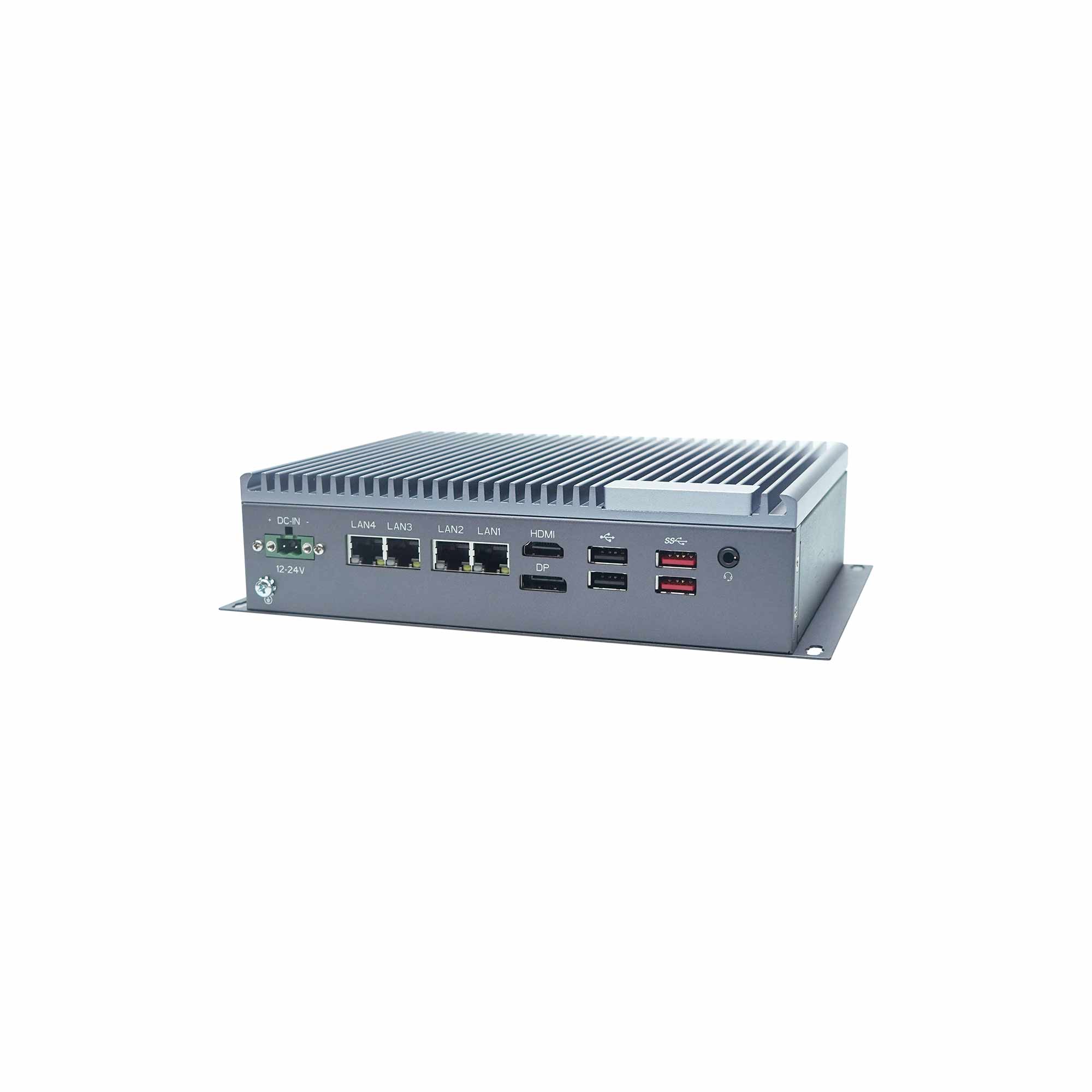

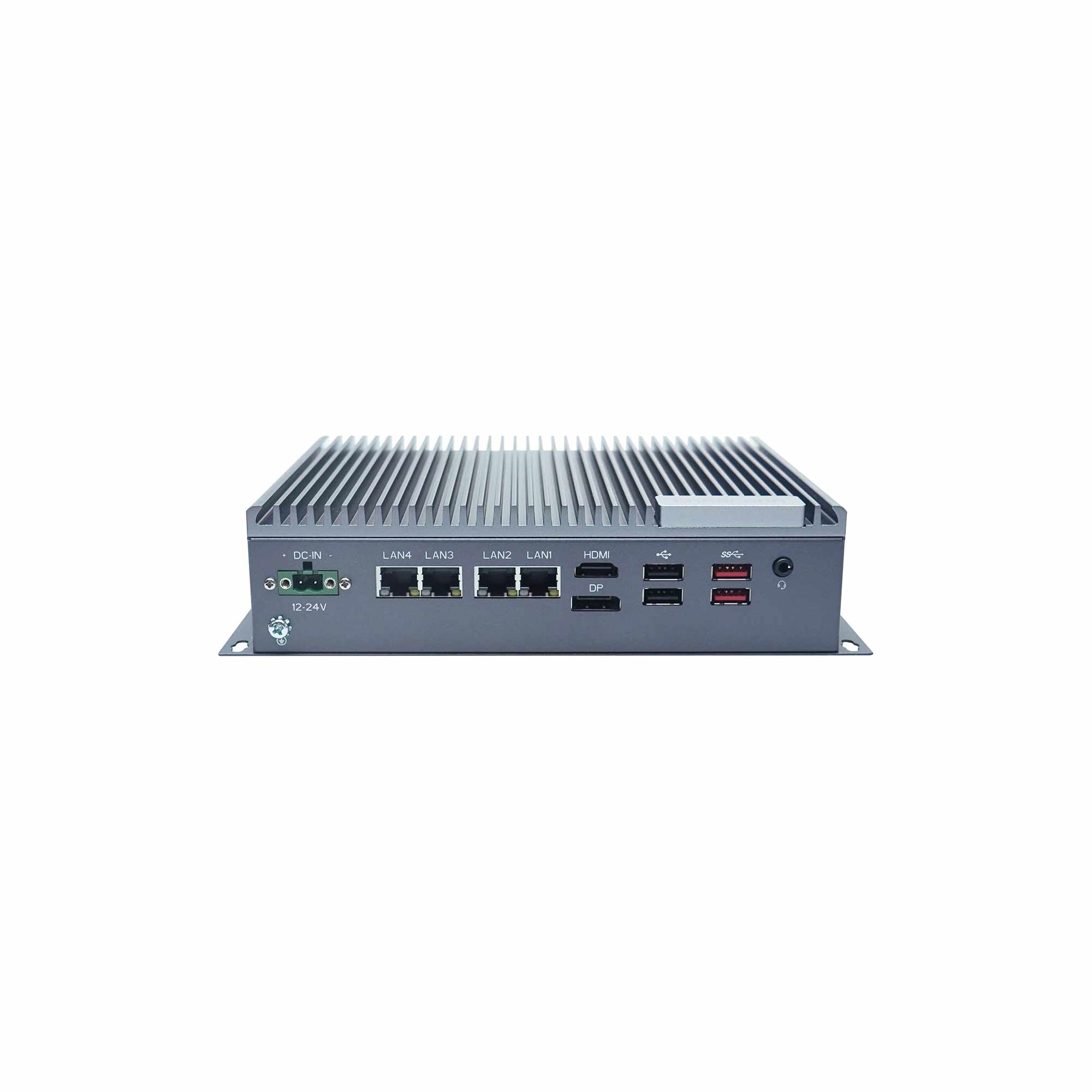

網口 Ethernet	1 x RJ45 Intel I210AT for 10/100/1000 Mbps 3 x RJ45 Intel I226-V for 10/100/1000 Mbps
顯示 Video	1 x HDMI up to 4096 x 2160 @ 24 Hz 1 x DP up to 4096 x 2160 @ 60 Hz
音頻 Audio	1 x Audio(Line-out & Mic-in ) ( 芯片888S/897)

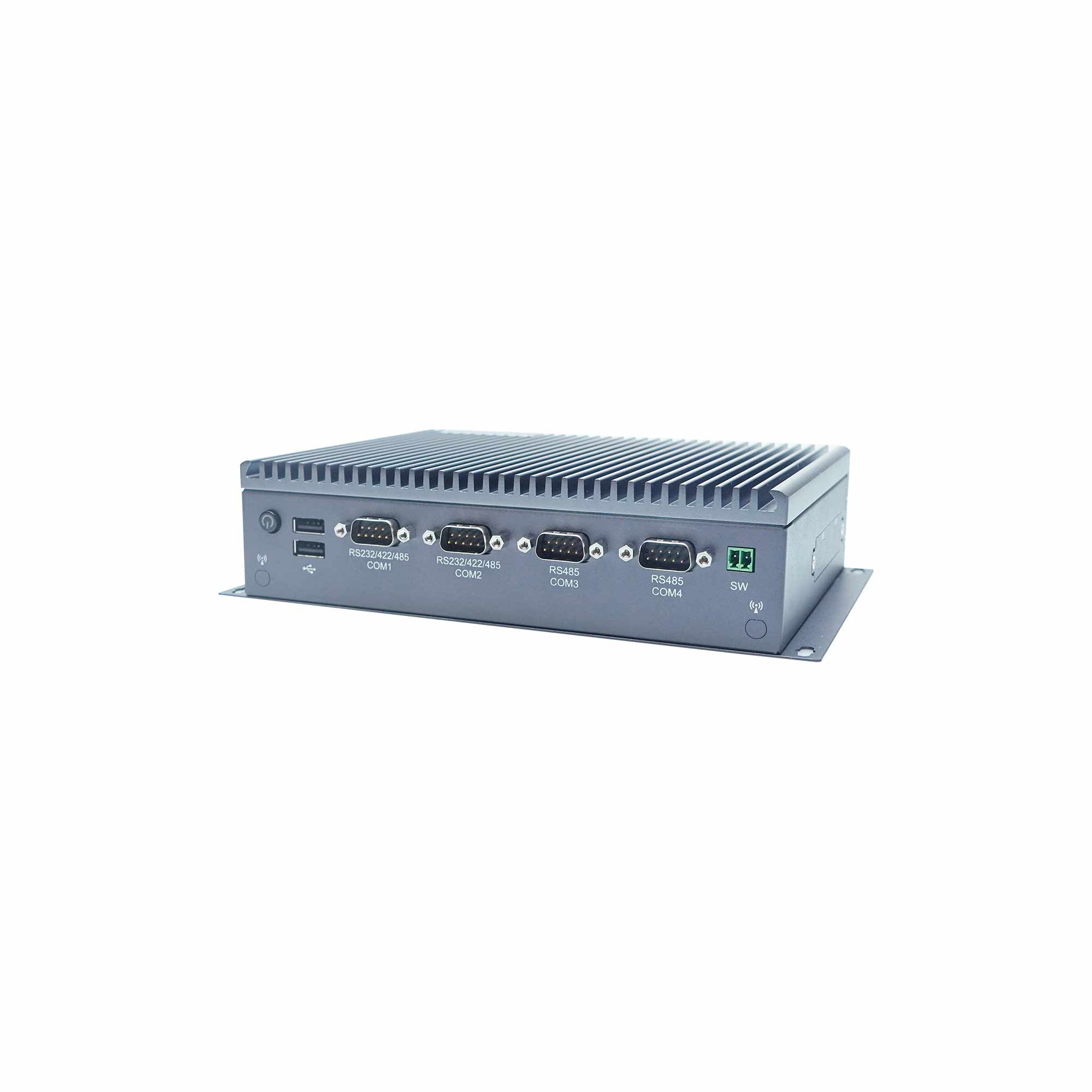

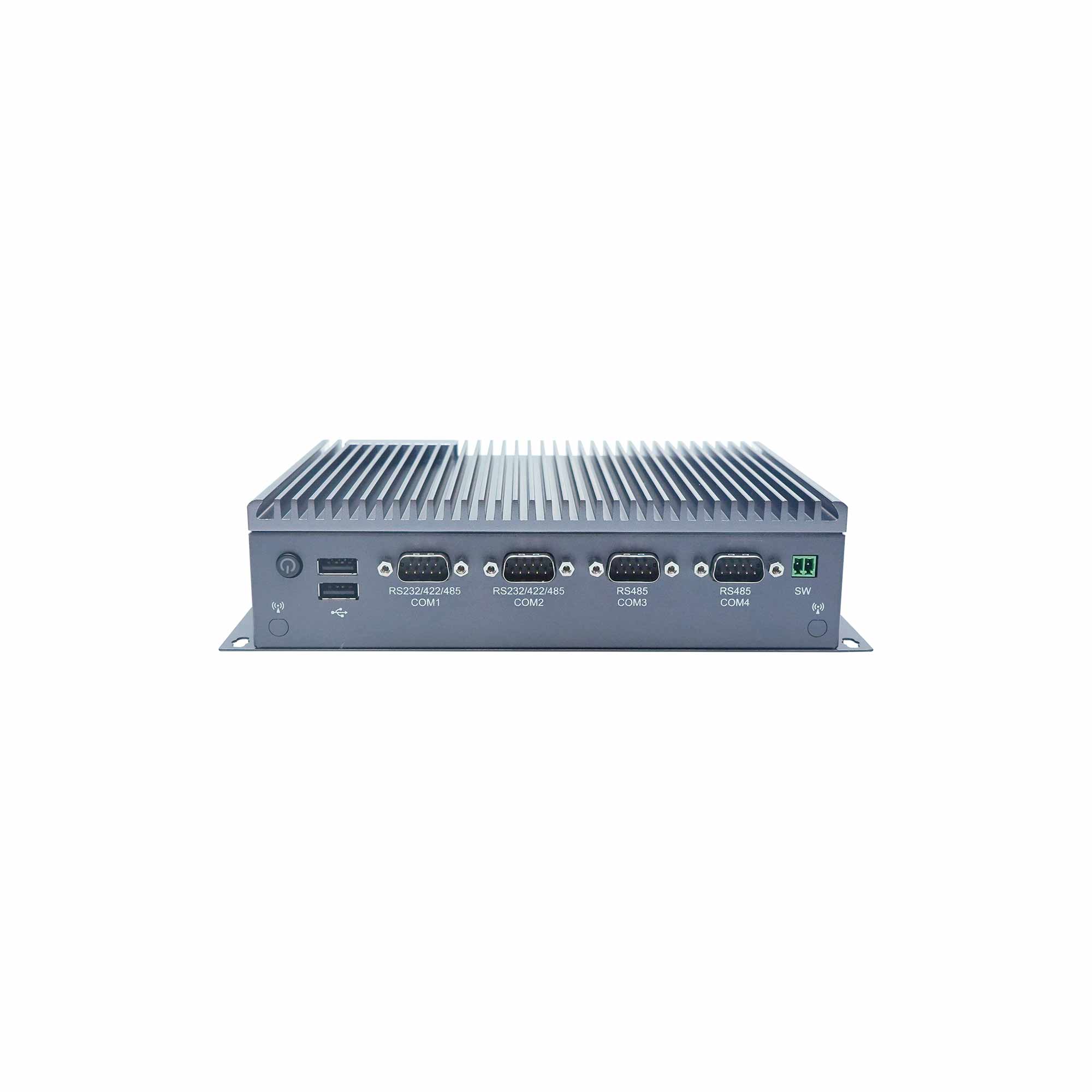

串口 COM	2 x RS-232/422/485 (default RS-232) with auto flow control， 2 x RS485 2 x RS232 (optional by internal pin head )
USB	2 x USB3.1 4 x USB2.0 1 x USB2.0 加密狗
GPIO	1 x 8bit programmable GPIO (default 3.3V, 5V optional)(optional by internal pin head )
按鈕 Button	1 x Power button
指示燈 LED	1 x Power LED (Green for Power-on, Blink for Sleep mode, Off for Power-off)
遠程開關 Remote ON-OFF	1 x SW

內部接口 Internal I/O

擴展接口 Expansion	1 x Mini-PCIe slot (PCIe/ USB2.0 signal supported) 1 x E-Key M.2 2230 slot (PCIe/USB2.0 signal supported) 1 x M.2 2242 SSD slot(SATA signal supported)
SIM 卡	1 x SIM Card socket for 3G/4G module

環境 Environmental

操作溫度 OperatingTemp.	-10℃ ~ 60℃ (SSD), 0℃ ~ 40℃ (HDD)
存儲溫度 Storage Temp.	-40℃ ~ 85℃
濕度Relative Humidity	5% ~ 95%, 非凝結狀態Non-condensing
振動 Vibration	SSD: 5~500Hz, 2Grms operation HDD: 5~500Hz, 1Grms operation
機械沖擊 Shock	Operation: 10G@11ms Non-operation: 30G@11ms
電磁兼容 ESD	Contact 6KV, Air 10KV
