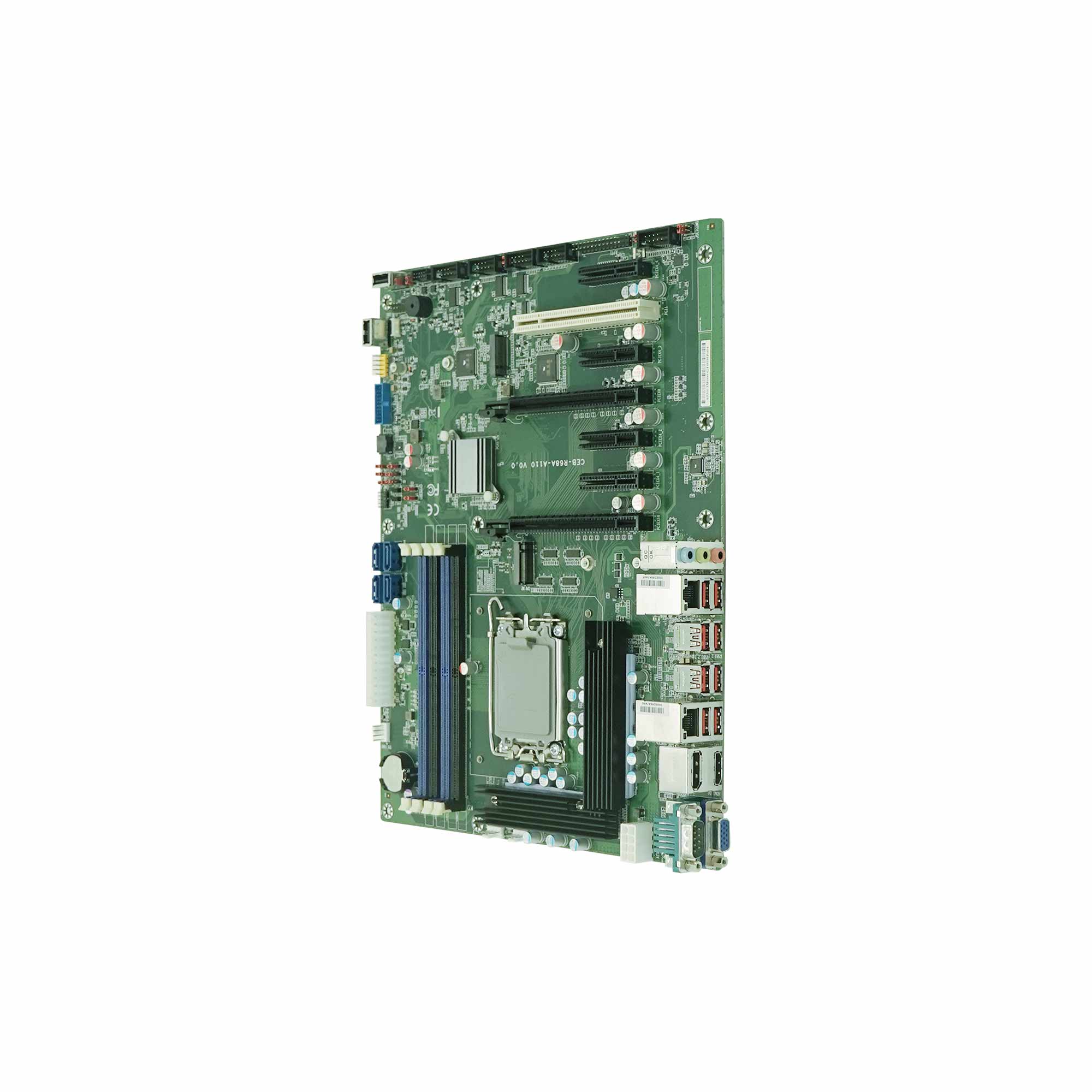

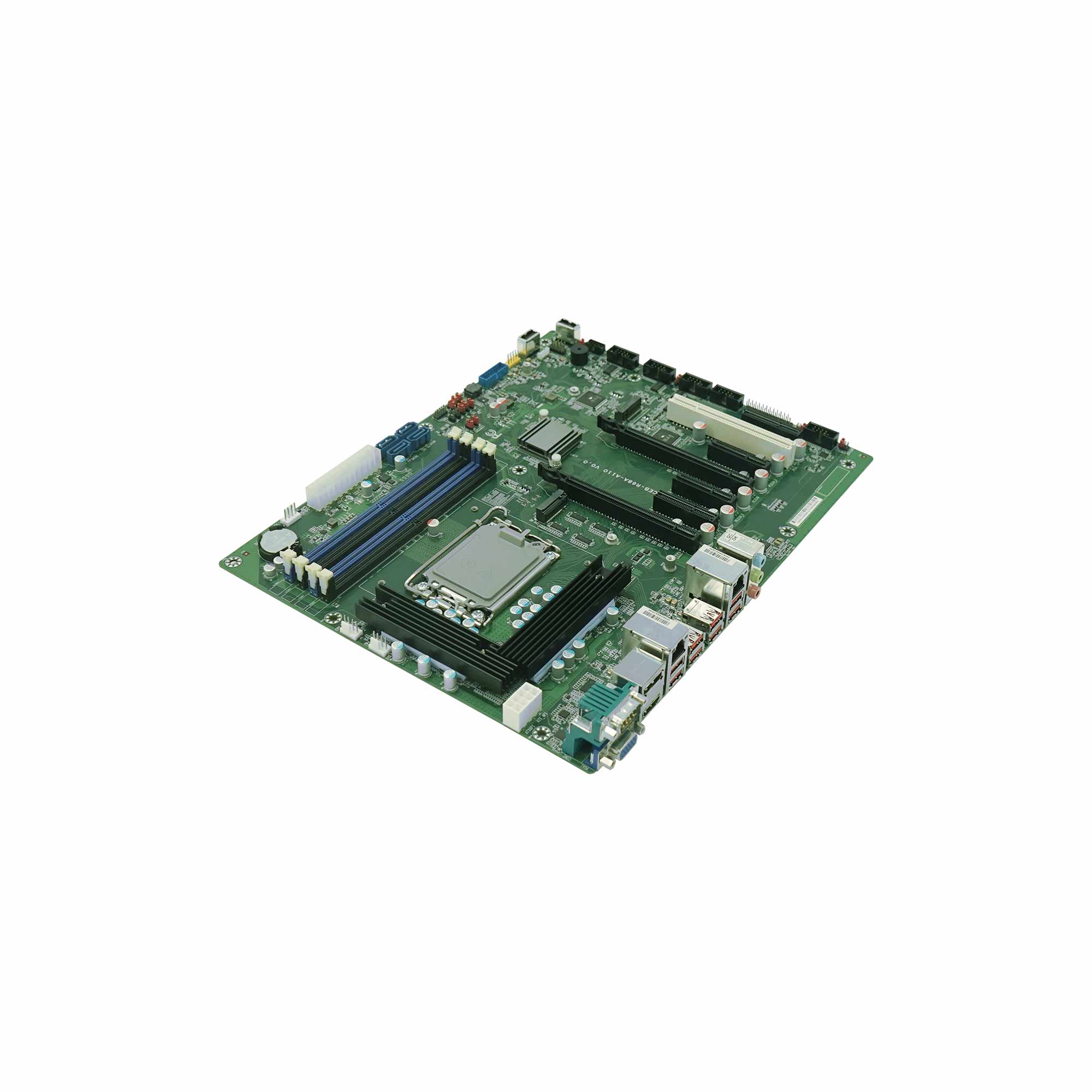

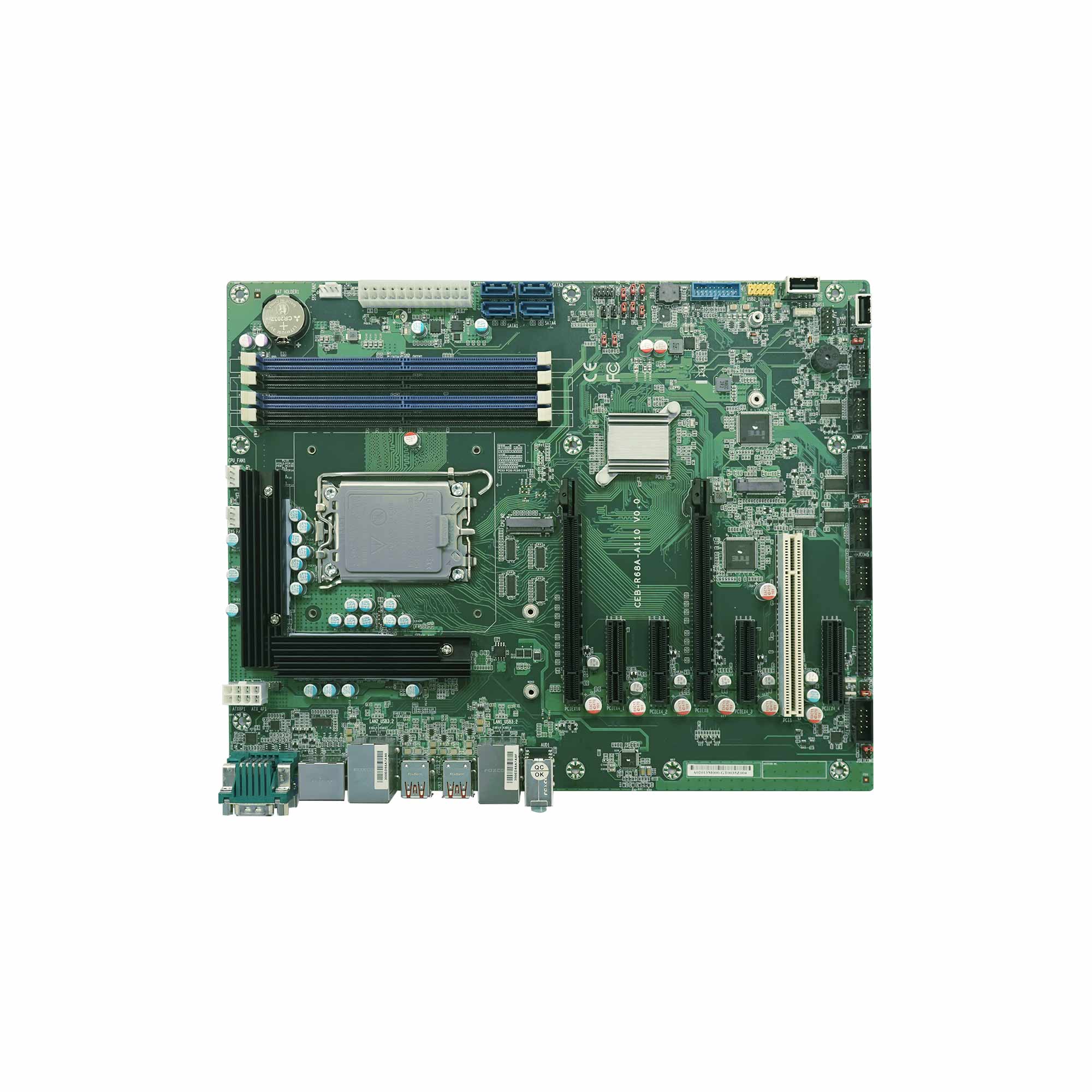

ATX工業主板 CEB-R68A-A110

Intel^?12/13代酷睿 i9/i7/i5/i3/奔騰^?/賽揚^?處理器, 功耗最高支援到125W, 支持intel vPro
雙通道4插槽 DDR5 ECC/Non-ECC 3600/4000/4400MHz, 高達128GB
支持VGA, HDMI2.0, DP++三屏顯示
支持雙Intel GbEs, USB3.2 Gen1/2, 8位GPIO
支持4個SATA3.0, RAID0/1/5/10
支持2個RS232/422/485和4個RS232串聯端口, 5V/12V電壓輸出
海岸線USB部分端口支援USB SR Pro技術
2 x PCIe4.0 X16 (1 x 16 or 2 x 8 link)和2 x PCIe4.0 X4 (X4 link), 2 x PCIe3.0 X4 (X4 link), 1個PCI, 1個M.2(PCIe3.0 X4 NVMe/SATA3.0) 2242/2280, 1個M.2(PCIe4.0 X4 NVMe )2242/2280

產品介紹
詳細參數
產品型錄
驅動程序

產品介紹：

Intel? 12th/13th Gen Core ? i9/i7/i5/i3/Pentium?/Celeron? Processor, LGA1700, TDP up to 125W

處理器 Processor	Intel^? 12th/13th Gen Core ? i9/i7/i5/i3/Pentium^?/Celeron^? Processor, LGA1700, TDP up to 125W
芯片組 Chipset	R680E
內存 Memory	4 x DDR5 ECC/Non-ECC 3600/4000/4400 MHz U-DIMM Slot, up to 128GB
存儲 Storage	4 x SATA 3.0, 1 x M.2 (PCIe3.0x4 NVMe/SATA3.0) 2242/2280, 1 x M.2( PCIe4.0 X4 NVMe ) 2242/2280
顯示 Display	Intel^? UHD Graphics 770
網口 Ethernet	1 x Intel^? i219-LM GbE, 1 x Intel^?I226-V co-lay I225-LM (10/100/1000/2500 Mbps)
音頻 Audio	Realtek^? ALC888S/ALC897 HD Audio codec, supports 5.1-channel
BIOS	AMI UEFI BIOS

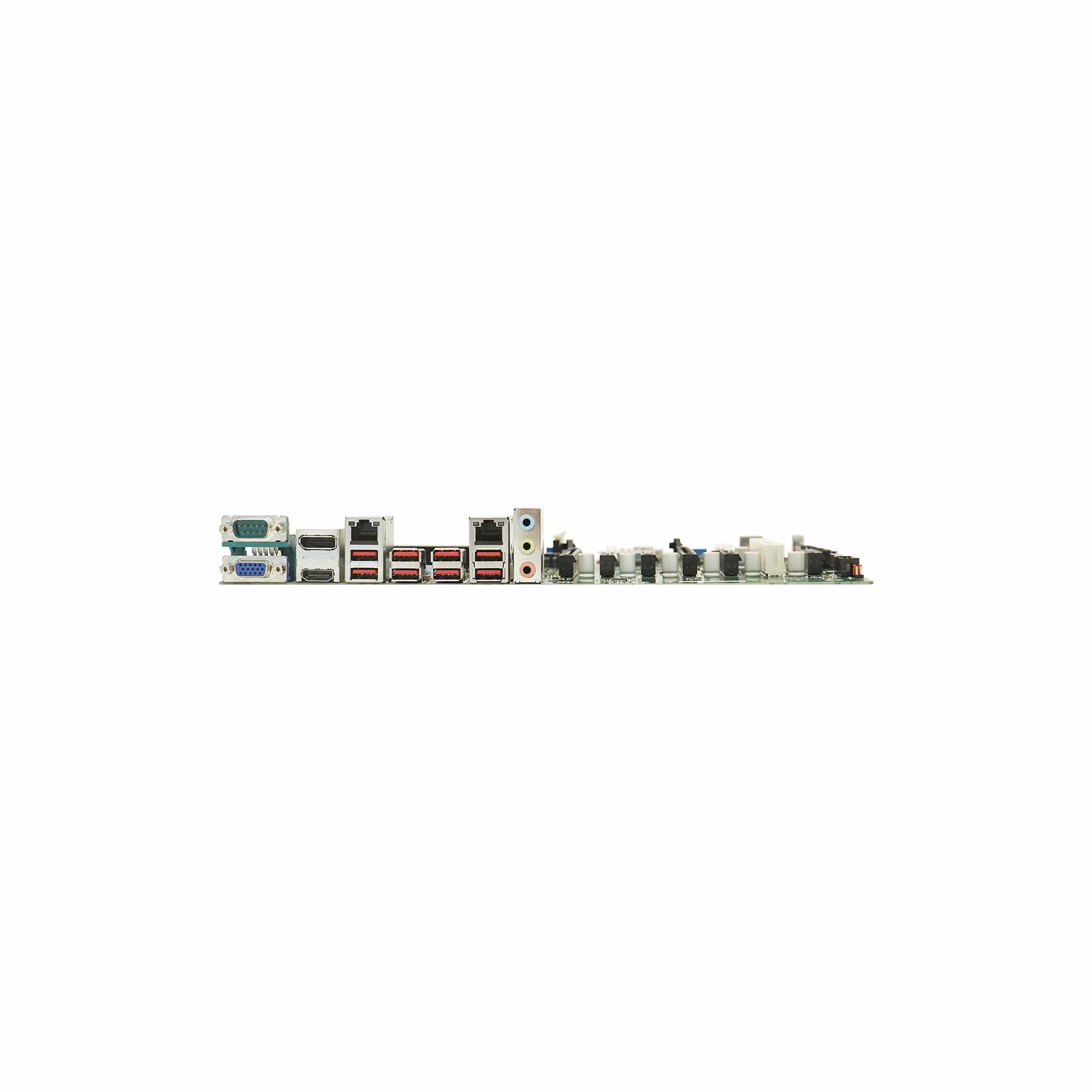

外部接口 Rear I/O	1 x VGA: max resolution up to 1920 x 1200 @ 60Hz 1 x HDMI2.0: max resolution up to 4096 x 2160 @ 60Hz 1 x DP++: max resolution up to 4096x2304 @ 60Hz 8 x USB3.2 Gen2 2 x RJ45 1 x RS232/422/485 with auto flow control 1 x Line-out, Line-in, Mic-in
內部接口 Internal I/O	1 x RS232/422/485 with auto flow control 4 x RS232 2 x USB3.2 Gen1 4 x USB2.0 (2 x Type-A) 1 x 8 bit GPIO 4 x SATA3.0 1 x PS/2 (for Keyboard and Mouse) 1 x CPU_FAN 2 x SYS_FAN 1 x LPT 1 x FP(power button,power led,reset,HDD led)
擴展接口 Expansion	2 x PCIe4.0 X16 ( 1 x 16 or 2 x 8 link) 2 X PCIe4.0 X4 (X4 link) 2 X PCIe3.0 X4 (X4 link) 1 x PCI 1 x M.2 (PCIe3.0 X4 NVMe/SATA3.0)2242/2280 1 x M.2(PCIe4.0 X4 NVMe) 2242/2280
信賴平臺模塊 TPM	Nuvoton TPM2.0
環境 Environment	操作溫度Operation temp: 0℃ ~60℃ 存儲溫度Storage temp: -40℃ ~85℃ 操作濕度Operation hum: 5%~90%, 非凝結 non-coagulation 存儲濕度Storage hum: 5%~95%, 非凝結 non-coagulation
電源輸入 Power Input	ATX
尺寸 Dimensions	304.8 x 244 mm (12" x 9.6")
操作系統 OS	Windows 10 64bit, Linux
看門狗 Watchdog Timer	System Reset, Programmable via software from 1 to 255 seconds

The PCIe x16 slot, from CPU, can only support graphic cards and storage cards according to the specification recommended by Intel. Other types of add-on cards might not work properly.
