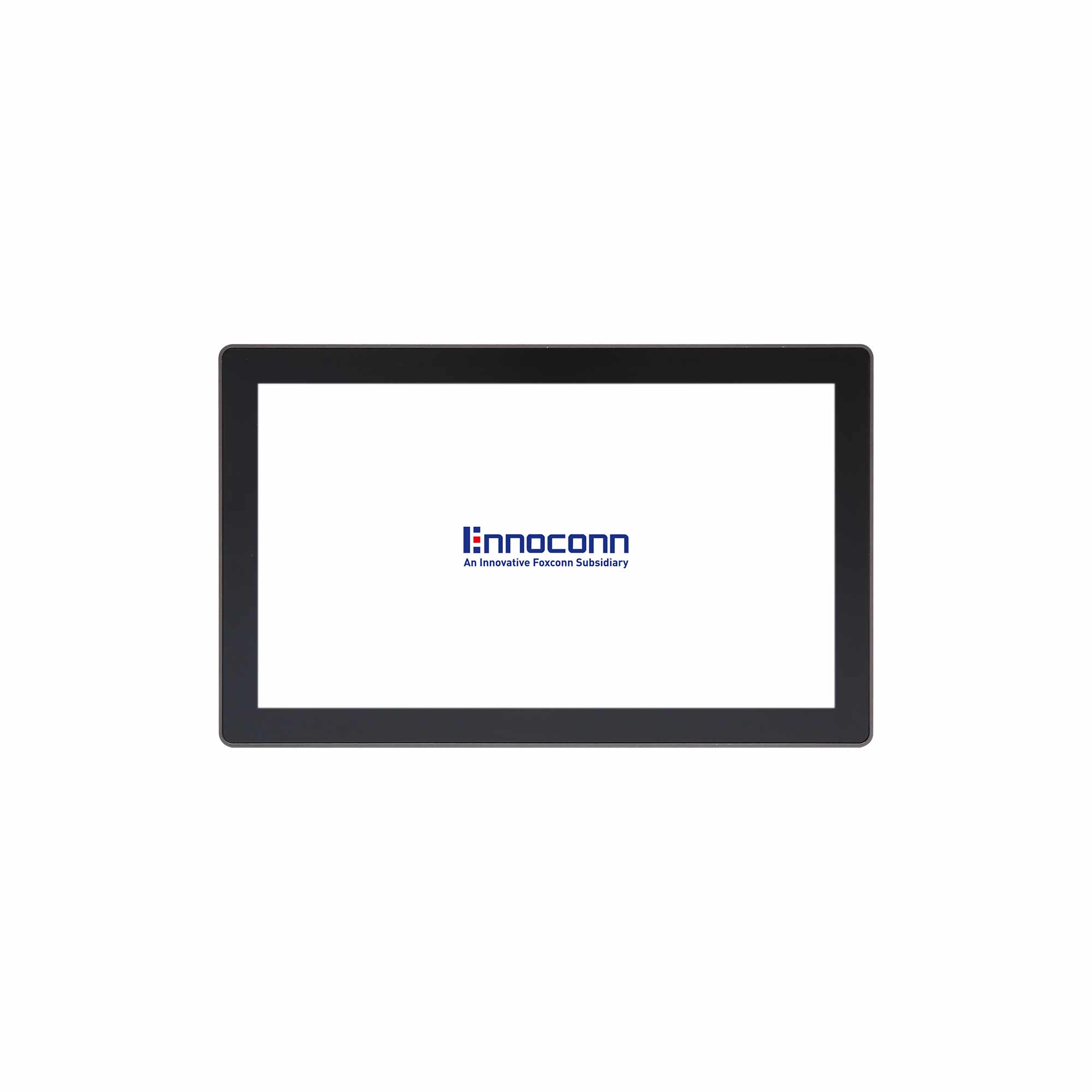

15.6寸工業平板電腦 CEP-15XW-TGLU

板載11代 Intel^? Core? Tiger lake U i7/i5/i3 處理器
可選15.6英寸HD或FHD LED背光顯示屏，前面框支持IP66防護等級
鋁合金的機身使其輕薄、堅固穩定、散熱效果更好
可選工業等級10點投射式電容觸摸屏或全平面五線電阻屏
內置Mini-PCIe/M.2 2230/M.2 2242 支持多種模塊擴展
支持三個千兆網口
寬壓10-36V DC-IN，可鎖附鳳凰端子接口
支持遠程開關
產品外殼接地保護
內置2個3W 4Ω Speaker
內置1 x 2.5寸HDD/SSD可擴充支架
支持標準VESA及嵌入式安裝方式

產品介紹
詳細參數
產品型錄
驅動程序

產品介紹：

工業無風扇觸摸一體機，采用15.6寸全平面五線電阻屏，Intel? Core? Tiger lake U i7/i5/i3

系統 System

處理器 Processor	i3-1115G4 3.0G (2 Cores, 6M Cache, up to 4.1GHz) i5-1135G7 2.4G (4 Cores, 8M Cache, up to 4.2GHz) i7-1165G7 2.8G (4 Cores, 12M Cache, up to 4.7GHz) i5-1145G7E 1.5G (4 Cores, 8M Cache, up to 4.1GHz)
內存 Memory	1 x DDR4 3200 MHz SO-DIMM, up to 32 GB
存儲 Storage	1 x 2.5" SATA3.0 HDD/SSD 1 x M.2 2242 SSD slot
圖形 Graphics	Intel^? UHD Graphics for 11th Gen, Intel^? Processors & Intel^?Iris^? Xe Graphics
操作系統 OS	Windows 10, Linux
看門狗定時器 Watchdog Timer	Programmable 255 levels timer interval, from 1~255 sec/min

顯示屏 Display

尺寸 Size	15.6 inches
分辨率 Resolution	1366(H) x 768(V) or 1920(H) x 1080(V)
屏幕寬高比 Ratio	16:9
亮度 Brightness	500 nits or 450 nits
可視角 Viewing Angle	CR ≥ 10, 80° (T)/80° (B) 80° (L)/80° (R) or CR ≥ 10, 89° (T)/89° (B) 89° (L)/89° (R)
對比度 Contrast Ratio	600 or 800
背光 Backlight	LED Backlight
背光壽命 Backlight Lifetime	50000Hrs

觸摸屏 Touchscreen

觸摸屏 Touch Type	10 點投射式電容屏P-cap Multi-Touch or 全平面五線電阻屏5-Wire Resistive Touch
觸擊 Touch	35,000,000 times

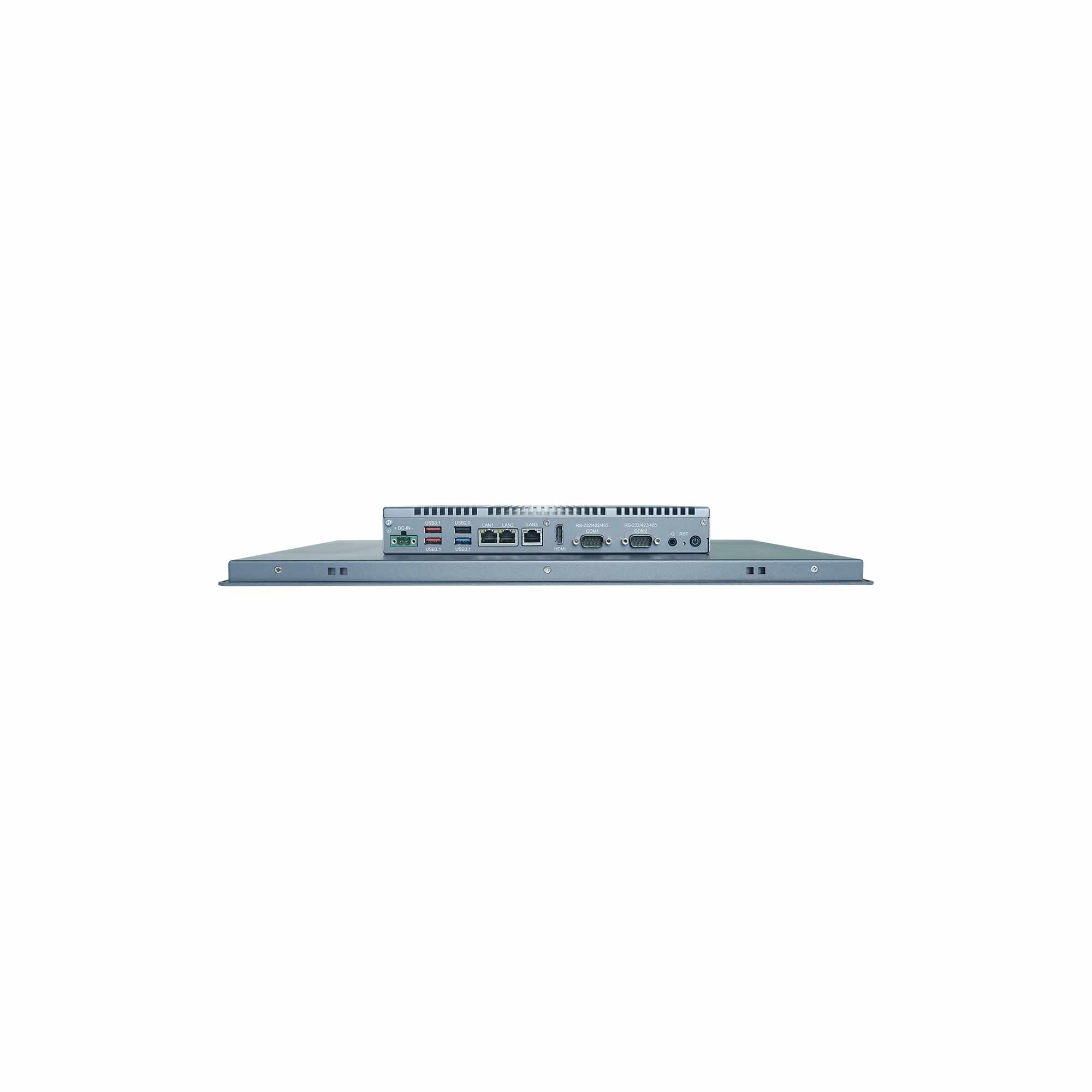

外部接口 External I/O

串口 COM	2 x RS232/422/485 (COM1/2) with DB9 2 x RS232/RS485, 2 x RS232 with 12PIN Phoenix connector
USB	4 x USB 3.1
網口 Ethernet	1 x RJ45 Intel^? I226V Gbe (10/100/1000 Mbps) 2 x RJ45 Intel^? I210-AT Gbe (10/100/1000 Mbps)
顯示 Video	1 x HDMI (up to 4096 x 2304@60Hz)
音頻 Audio	1 x Audio(Line-out&Mic-in 2 in 1), ALC888S 2 x Speaker 4Ω3W
重置Reset	1 x OS reset
開關按鍵Power bottom	1 x Power button W/LED (System 上電 -LED OFF/Power ONLED ON/Power OFF-LED OFF)
遠程開關 Remote ON-OFF	1 x Remote ON-OFF
電源輸入 Power Input	1 x Power Connector (2P Phoenix)

內部接口 Internal I/O

擴展接口 Expansion

1 x Mini-PCIe (PCIe/USB2.0 signal supported) 1 x M.2 Key-E 2230 slot (WiFi +BT supported) 1 x SIM socket

機構 Mechanical

前框 Front Panel	鋁 Aluminum
鋁擠 Heat-Sink	鋁 Aluminum
底板 Rear Cover	鐵 SECC
安裝方式 Mounting	Panel Mount, Wall and VESA-mount (100 x 100mm)
尺寸 Dimension	395(W) x 245.5(H) x 59(D)mm
建議開孔尺寸Cut Out	387 x 237.5mm
重量 Weight	4.55Kg

環境 Environmental

操作溫度 Operation Temp.	-10℃ ~ 50℃ (SSD), 0℃ ~ 40℃ (HDD
存儲溫度 Storage Temp.	-40℃ ~ 70℃
濕度 Relative Humidity	5% ~ 95%, 非凝結狀態 Non-condensing
隨機振動 Random Vibration	5~500Hz, 1Grms (HDD)operation, 5~500Hz, 2Grms (SSD)operation
正弦振動 Sine Vibration	5~500Hz, 2G Non-operation
機械沖擊 Shock	10g 11ms operation, 30g 11ms Non-operation
前面板防護 Ingress Protection	Front panel IP66
