產品介紹：

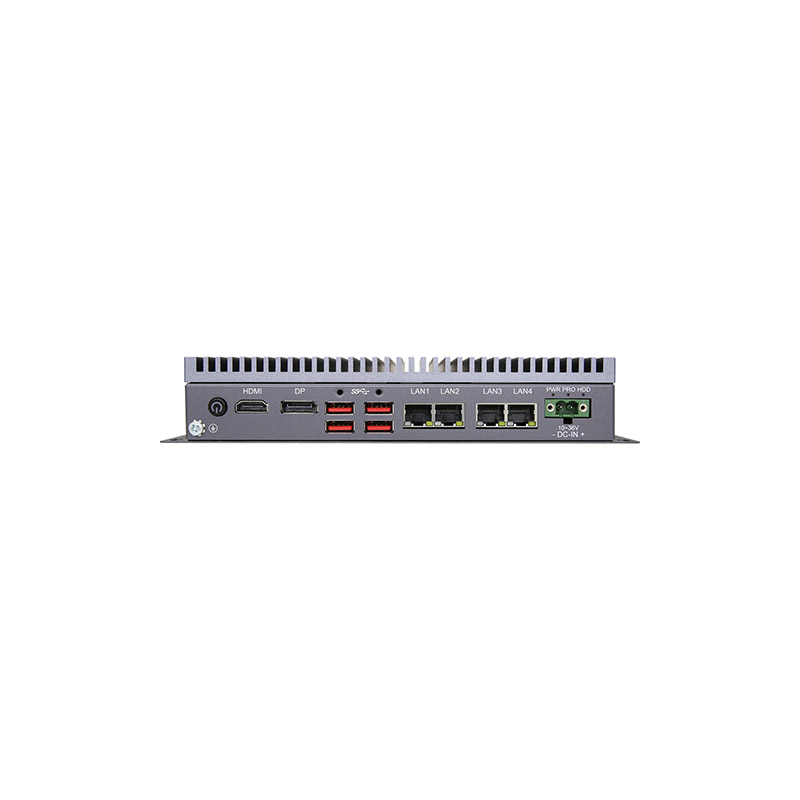

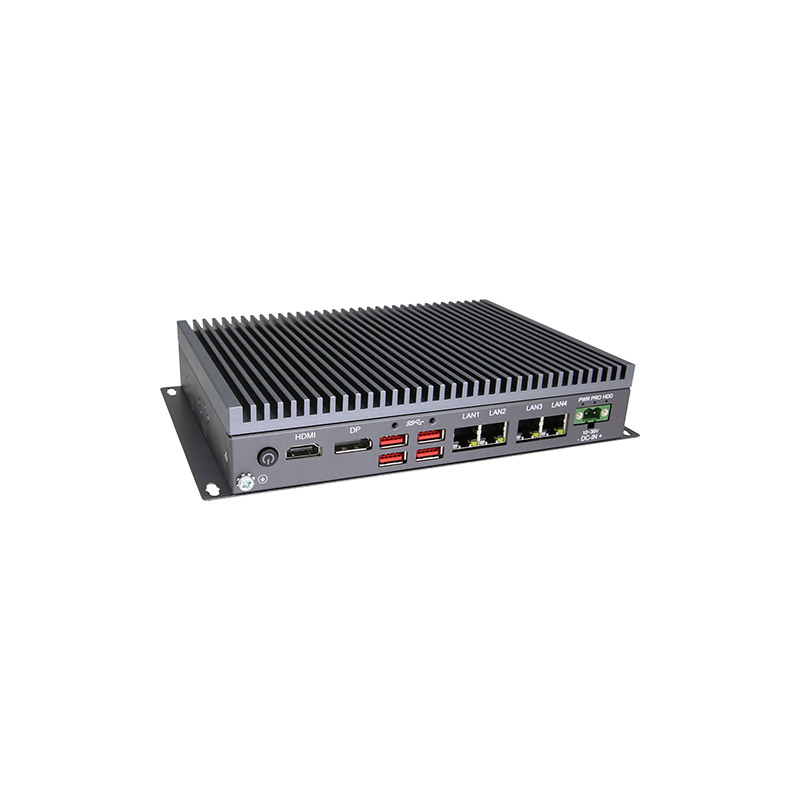

Intel? 8th Gen. U Processors i3-8145UE/i5-8365UE/i7-8665UE CPU, TDP 15W, 4 x LAN，4 x COM (up to 6 x COM), 6 x USB, 10-36V power input, fan-less system
| 網口 Ethernet | 4 x RJ45, Intel?2 x i211 and 2 x i210 GbE (10/100/1000 Mbps) |
| 顯示 Video | 1 x HDMI: max resolution up to 4096x2304@24Hz 1 x DP: max resolution up to 4096x2304@60Hz |
| 音頻 Audio | 1 x Audio (Line-out&Mic-in 2 in 1) Realtek? ALC888S HD Audio codec 1 x Bu ilt-in Speaker (optional) |

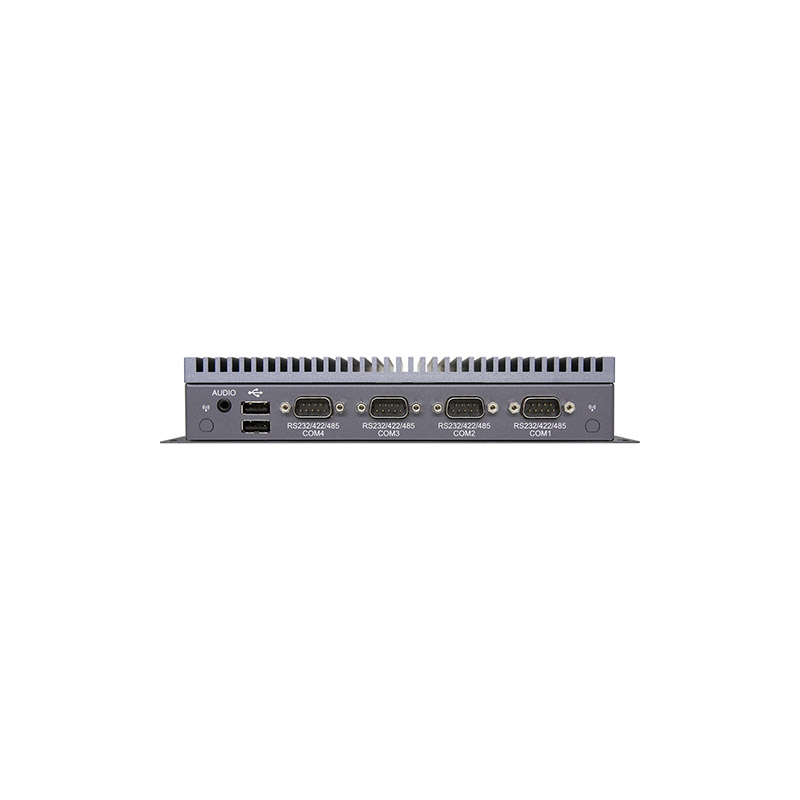

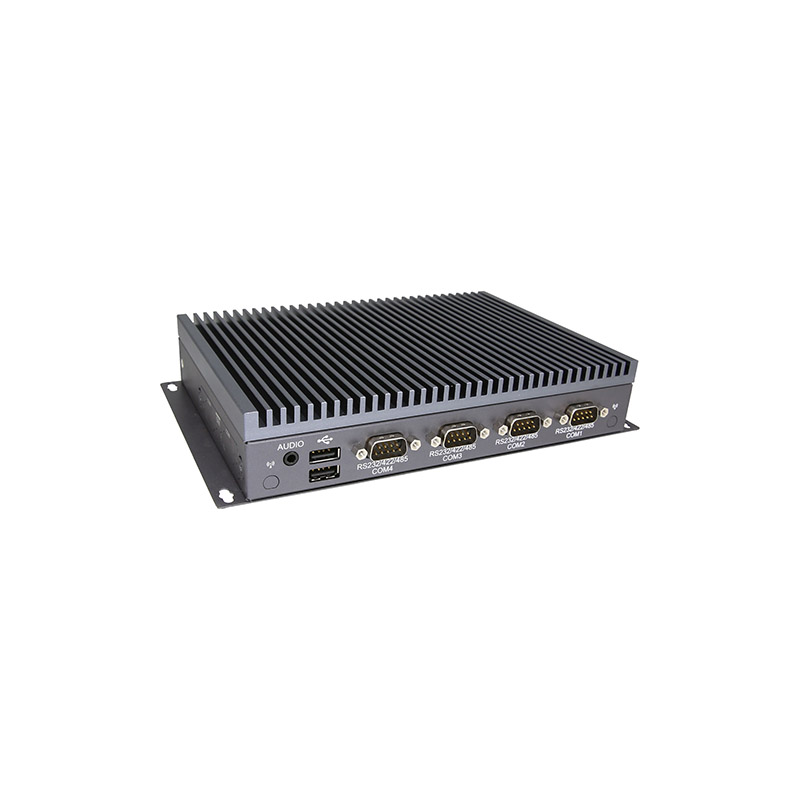

| 串口 COM | 4 x RS232/422/485 auto-flow 2 x RS232 (optional by 3*3 pin -head) |
| USB | 4 x USB 3.1 Gen2 2 x USB 2.0 |
| GPIO | 1 x 8bit programmable GPIO (optional) |
| 按鈕 Button | 1 x Power button (White for Power-on, Blink for Sleep mode, Off for Power-off) |
| 指示燈 LED | 1 x Power LED (Green for DC-in) 1 x HDD LED (Green blink for Data read or write) 1 x programmable LED (Green Default monitoring CPU temperature) |
| 擴展接口 Expansion | 1 x Mini-PCIe slot (Support PCIE/SATA/USB2.0 Singal) 1 x M.2 2230 Key-E slot (only supported CNVI Wifi module) 1 x M.2 2242 slot (Support PCIe/SATA signal) |
| SIM 卡 | 1 x SIM Card socket for 3G/4G module |
| Extension Module A (optional) | 1 x Mini-PCIe slot (Support PCIE/USB2.0 Singal) 1 x M.2 3042/3052 Key-B slot (5G communication m odule supported) 1 x EDP:max resolution up to 4096x2304@60Hz 1 x SIM socket for 5G module |
| Extension Module B (optional) | 1 x Mini-PCIe slot (Support PCIE/USB2.0 Singal) 1 x USB3.0 1 x EDP:ma x resolution up to 4096x2304@60Hz |
| Extension Module C (optional) | 1 x 16 bit DI/O with optocoupler isolation DI 2500vrms, DO 2500vrms, response time ≤2ms, Output Frequency≤500Hz, Maximum driving capacity 100mA , NPN or PNP by optional |
| 操作溫度 OperatingTemp. | -20℃ ~ 60℃ (SSD), 0℃ ~ 40℃ (HDD) |
| 存儲溫度 Storage Temp. | -40℃ ~ 85℃ |
| 濕度Relative Humidity | 5% ~ 95%, 非凝結狀態Non-condensing |
| 振動 Vibration | SSD: 5~500Hz, 2Grms operation HDD: 5~500Hz, 1Grms operation |
| 機械沖擊 Shock | SSD: 5~500Hz, 2Grms operation HDD: 5~500Hz, 1Grms operation |
| 電源輸入 Power Input | 10~36V DC, 2-pin phoenix connector |
| 外觀 Housing | 鋁合金 Aluminum Alloy |
| 安裝方式 Mounting | Desk-Mount (桌面式) Wall-Mount (壁掛式) VESA-Mount (100 x 100mm)(optional) |
| 尺寸 Dimension | 224 x 140 x 40 mm (基礎型) 224 x 140 x 65 mm (一層擴展) 224 x 140 x 85 mm (二層擴展) |
| 重量 Weight | 1.35kg |
| 安規認證 Safety Certification | CCC |
